產品介紹

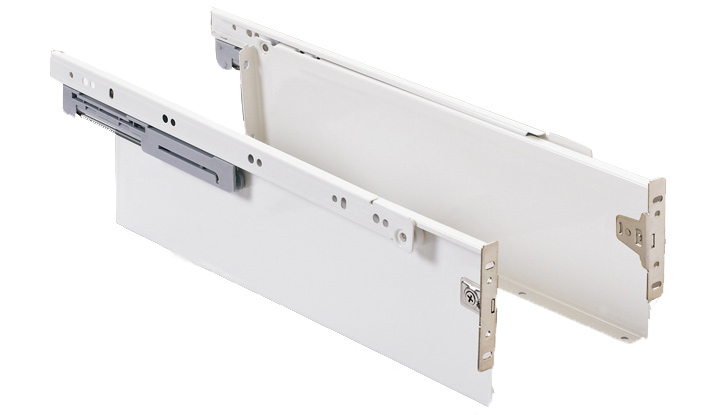

自關類側板滑軌
雙重限位止動
承重25kg
料厚(SPCC):0.9~1.1mm
規格:10"~24"
表面處理:根據客戶需要噴涂

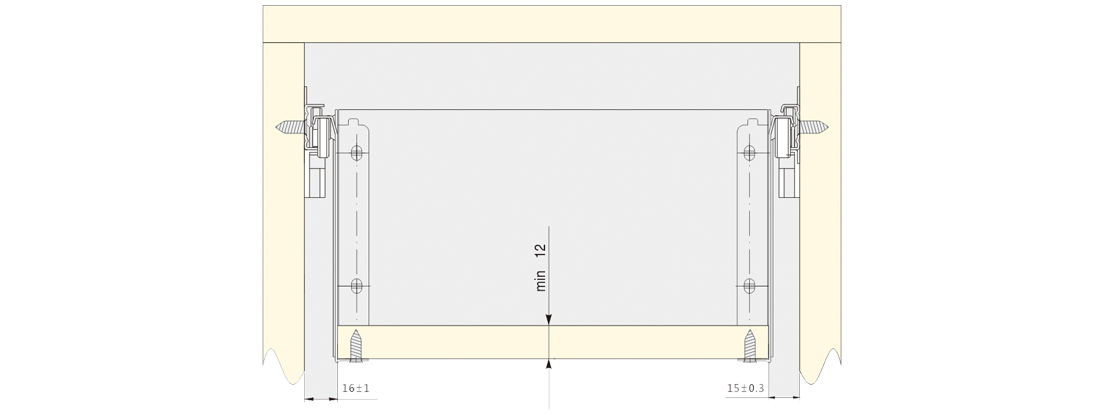

安裝尺寸:31±1
產品特色:DR/DL尾部安裝有快裝調節器可上下調節2mm
CR/CL上裝有緩沖器具有良好緩沖自關功能
型號 | 54# | 86# | 118# |
尺寸規格 | 10"250mm | 10"250mm | 10"250mm |
11"270mm | 11"270mm | 11"270mm |
12"300mm | 12"300mm | 12"300mm |
14"350mm | 14"350mm | 14"350mm |
16"400mm | 16"400mm | 16"400mm |
18"450mm | 18"450mm | 18"450mm |
20"500mm | 20"500mm | 20"500mm |
22"550mm | 22"550mm | 22"550mm |
24"600mm | 24"600mm | 24"600mm |
型號 | 150# | 200# |
尺寸規格 | 10"250mm | 10"250mm |
11"270mm | 11"270mm |
12"300mm | 12"300mm |
14"350mm | 14"350mm |
16"400mm | 16"400mm |
18"450mm | 18"450mm |
20"500mm | 20"500mm |
22"550mm | 22"550mm |
24"600mm | 24"600mm |
